43mm Penetration X-Ray Airport Baggage Scanner For Airport And Public Places
Specification
| Category | Item | Spec. |
| Basic Information | Working Voltage | 220V |
| Tunnel Size | 800x650 mm |
| Conveyor Max Load | 180KG |
| Max Power Consumption | 0.46 KVA |
| Noise Level | < 60 db |
| Product Size | 200(L) x117(W) x160(H) cm |
| X-Ray Generator | Tube Current | 0.4~1.2mA |
| Tube Voltage | 100-160KV |
| Cooling Style | 100% oil cooling |
| Generate Direct | from TOP |
| X-Ray Sensor | Dual energy |
| Generate Angle | 80 degree |
| Image System | Monitor | 19 inch LCD |
| Color | 32 bit true color |
| Image Enhancement | 16/64 times |
| Image Storage | 300,000 |
| Operation Desk | Optional |
| Operation System | Windows |
Use environment temperature and humidity: 0 to 45 degree Celsius/20% ~ 95% (not condensed)
Storage temperature and humidity: -20 to 60 degree Celsius/ 20% ~ 95% (not condensed)
Parameter
X ray generator:
X-ray sensor: L-style photodiode array (single energetic) detector, 12 bit depth.
Generate direct: from top
Tube current: 0.4~1.2mA (adjustable)
Tube voltage: 100-160 KV (adjustable)
X-ray beam divergence angle: 80 degrees
Cooling style: 100% oil cooling
Image System
19 inch display screen with high resolution
Color image display 32 bit true color
Image enhancement to make detail more clearly
High/Low penetration to improve the area contrast
Real-time curve,Image reback and recover funtion
Image storage:save any images and processing continuous

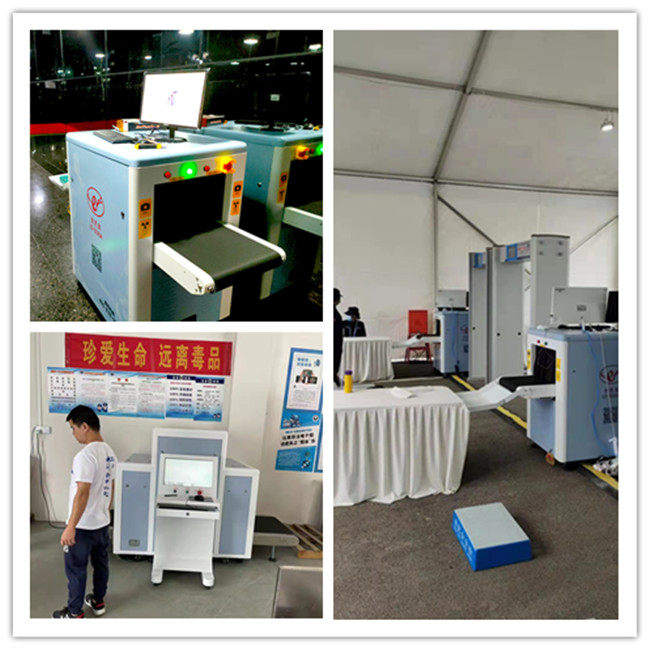

Example Case
Changchun Museum
Guangzhou Art Museum
Express company and hotel
Shenzhen New Yaoshi Concert
The 2nd Shenzhen International Marathon
Our products are used in international market such as
Africa, Southeast Asia, Mideast, Europe and South America.
Certification
CE,RoHS, FCC,ISO19001, ISO14001
Application Example
X-Ray luggage scanner , airport baggage scanner machine ,public security check
