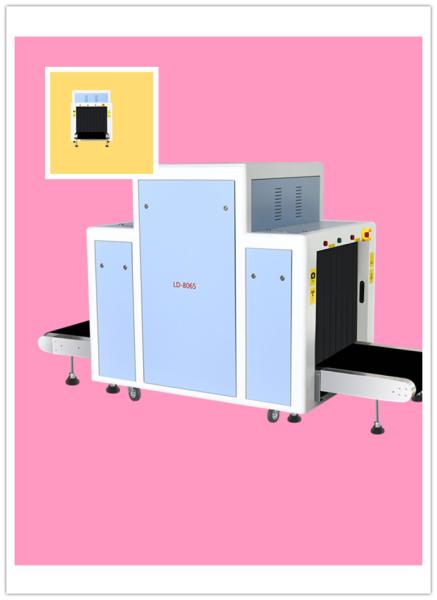

Chuangyilong 800x650mm Tunnel Cargo Scanning Machine For Security Check
Product Description
Shenzhen Chuangyilong Electronic Technology Co., Ltd. (a national high-tech enterprise) focus on the field of express,logistics and other public places security inspection,is a leading security inspection products and solution provider in China.
Security baggage scanner is a typical product of Chuangyilong company.It uses X-ray to penetrate and check baggage or cargo without open.
Now our machines are used in different fileds all over the world.
Specification
| Category | Item | Spec. |
| Basic Information | Working Voltage | 220V |
| Tunnel Size | 800x650 mm |
| Conveyor Max Load | 180KG |
| Max Power Consumption | 0.46 KVA |
| Noise Level | < 60 db |
| Product Size | 200(L) x117(W) x160(H) cm |
| X-Ray Generator | Tube Current | 0.4~1.2mA |
| Tube Voltage | 100-160KV |
| Cooling Style | 100% oil cooling |
| Generate Direct | from TOP |
| X-Ray Sensor | Dual energy |
| Generate Angle | 80 degree |
| Image System | Monitor | 19 inch LCD |
| Color | 32 bit true color |
| Image Enhancement | 16/64 times |
| Image Storage | 300,000 |
| Operation Desk | Optional |
| Operation System | Windows |
Package Information
Product size: 200(L) x117(W) x160(H) cm
Worktop available if need
Transport Package: Wooden
Place of Origin: Shenzhen, China
Image System Main Functions
Color/BW, Image Enhancement, High/Low Penetration, Super Enhancement, Organics Exclusion, Inorganic Exclusion, Negative, Brightening, Darkening, Gray-Level scan, Organics Enhancement, Edge Enhancement etc.
FAQ:
1. Q: Can I get some samples?
A: Yes,sample order is available
2. Q: What's the delivery time?
A: 3-7 work days
3. Q: How long is the warranty period ?
A: We offer one year warranty
4. Q: How about the freight?
A: The shipping cost depends on different weight, we suggest airway and seaway based on different qty. We will choose the cheapest and best solution according your condition.
5. Q: How does your factory do regarding the quality control?
A: Quality is first, every product will be fully assembled and carefully tested before delivery.
Application Example
X-Ray luggage scanner , airport baggage scanner machine ,public security check
